Approval of model under the Legal Metrology Government of India

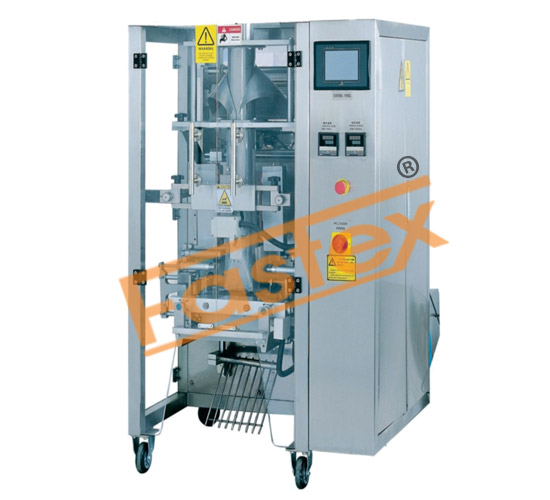

Collar Type Bagger Pouch Packing Maching

Technical Specifications

Machine name VFS. Collar Type Bagger Machine
Model BPP - 011
Filling Capacity 50 - 250 to 500 - 1000. Gms.
Machine Speed 1000 to 4000 Pouches / Hr.
Total Power 1.5 Kw. 220v. Single Phase 50 / 60Hz,
Air Compresser 5 Cfm With 6 bar Pressure
Weight 730 Kg (Approx)
Dimension 1550mm X 1200mm X 1800mm (D x W x H)

Application

The FASTEX gusset bag VFS (Vertical Form Seal) machine is ideal for packing granule, power, solid state materials, such as coffee, potato chips, puffed food, shrimp crackers, peanuts, nuts, popcorns, salt, sugar, tea, seeds, and others.

Main Features

  • FASTEX gusset bag VFS machine provides double servo motors for the film drawing down system.
  • The gusset bag vertical form fill seal machine comes with automatic film rectifying deviation.
  • The vertical packaging machine is designed with famous brand PLC and pneumatic system for vertical and horizontal sealing.
  • The gusset bag VFS machine is compatible with different internal and external measuring devices.

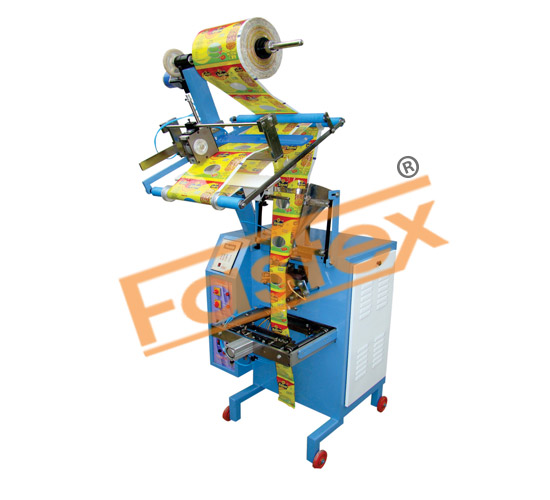

Bagger Pouch Packing Maching

Technical Specifications

Machine name Half Pneumatic Type Bagger Machine
Model BPP - 103
Filling Capacity 5 to 1000. Gms.
Weighing Speed 1200 Pouches / Hr.
Total Power 1.5 Kw. 220v. Single Phase 50 / 60Hz,
Air Compresser 5 Cfm With 6 bar Pressure
Weight 250 Kg
Dimension 1120mm X 860mm X 2080mm (D x W x H)

Application

The FASTEX gusset bag VFS (Vertical Form Seal) machine is ideal for packing granule, power, solid state materials, such as coffee, potato chips, puffed food, shrimp crackers, peanuts, nuts, popcorns, salt, sugar, tea, seeds, and others.

Main Features

  • FASTEX gusset bag VFS machine provides double servo motors for the film drawing down system.
  • The gusset bag vertical form fill seal machine comes with automatic film rectifying deviation.
  • The vertical packaging machine is designed with famous brand PLC TOUCH SCREEN control system and pneumatic system for vertical and horizontal sealing.
  • The gusset bag VFS machine is compatible with different internal and external measuring devices.
